EZ Form同轴电缆EZ-Flex Formable? - Hand Formable
发布时间：2021-11-03 16:50:10 浏览：2175

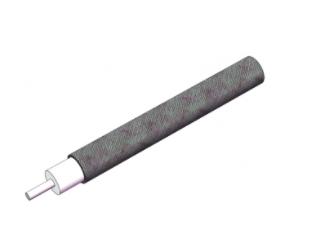

应用EZ Form的EZ-FlexFormable?电线电缆，错综复杂的图纸和高昂的弯曲专用工具已成为过去。EZ FlexFormable?电线电缆的铜锡复合外导体提供与实心护套半刚性电线电缆相同的100%屏蔽，但能够轻松地根据您的规格尺寸手动成型。EZ-Flex Formable?电线电缆可与为半刚性电线电缆制造的焊接连接器一起应用，提供相似的电气性能，而不需要设计和制造复杂性。
深圳市立维创展科技有限公司，授权代理EZ Form产品，欢迎咨询。
详情了解EZ Form Cable产品请点击：/brand/78.html
或联系我们的销售工程师：0755- 83642657 QQ： 2295048674
铝夹套
电缆部件号 | 外导体直径 | 辩证材料 | 导体材料 | 阻抗（欧姆） | 速度 | 最大工作频率 |
EZ-PT86-AL-SP | 0.086 (2.18) | TF4? | SPCW | 50.0 ±2.0 | 79.0% | 79 |
EZ-86-75-AL | 0.0865 (2.2) | 聚四氟乙烯 | SPCW | 75.0 ±2.0 | 69.5% | 65 |
EZ-86-75AL | 0.0865 (2.2) | 聚四氟乙烯 | SPCW | 75.0 ±2.0 | 69.5% | 65 |
EZ-86-75-AL-TP | 0.0865* (2.20*) | 聚四氟乙烯 | SPCW | 75.0 ±2.0 | 69.5% | 65 |
EZ-PT86-AL-TP | 0.0865* (2.20*) | TF4? | SPCW | 50.0 ±1.5 | 79.0% | 60 |
EZ-86-AL-TP-HR | 0.0865* (2.20*) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 69.5% | 60 |
EZ-90-25-AL | 0.09(2.29) | 聚四氟乙烯 | SPC | 25.0 ±2.0 | 69.5% | 46 |
EZ-141-100-AL | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 100.0 ±2.5 | 69.5% | 43 |
EZ-141-25-AL | 0.141 (3.58) | 聚四氟乙烯 | SPC | 25.0 ±1.0 | 69.5% | 29 |
EZ-141-25-AL-TP | 0.141 (3.58) | 聚四氟乙烯 | SPC | 25.0 ±1.0 | 69.5% | 29 |
EZ-141-70-AL | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 70.0 ±2.0 | 69.5% | 41 |
EZ-141-70-AL-TP | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 70.0 ±2.0 | 69.5% | 41 |
EZ-141-75-AL | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 75.0 ±2.0 | 69.5% | 38 |
EZ-141-75-AL-TP | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 75.0 ±2.0 | 69.5% | 38 |
EZ-141-100-AL-TP | 0.141* (3.58*) | 聚四氟乙烯 | SPCW | 100.0 ±2.5 | 69.5% | 43 |
EZ-PT141-AL-SP | 0.141* (3.58*) | TF4? | SPC | 50.0 ±2.0 | 79.0% | 38 |
EZ-FLEX 镀锡编织物
电缆部件号 | 外导体直径 | 辩证材料 | 导体材料 | 阻抗（欧姆） | 速度 | 最大工作频率 |
EZ-FLEX.47 | 0.047 (1.19) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 70% | 116 |
EZ-FLEX.47-CU | 0.047 (1.19) | 聚四氟乙烯 | SPC | 50.0 ±1.5 | 70% | 116 |
EZ-FLEX.47-CU-DS | 0.047 (1.19) | 聚四氟乙烯 | SPC | 50.0 ±1.5 | 70% | 116 |
EZ-FLEX.47-J | 0.047 (1.19) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 70% | 116 |
EZ-FLEX.86 | 0.086 (2.18) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.86-75 | 0.086 (2.18) | 聚四氟乙烯 | SPCW | 75.0 ±2.0 | 70% | 67 |
EZ-FLEX.86-CLEAR | 0.086 (2.18) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.86-CU | 0.086 (2.18) | 聚四氟乙烯 | SPC | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.86-CU-DS | 0.086 (2.18) | 聚四氟乙烯 | SPC | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.86-CU-J | 0.086 (2.18) | 聚四氟乙烯 | SPC | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.86-DS | 0.086 (2.18) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.86-DS-J | 0.086 (2.18) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.86-J | 0.086 (2.18) | 聚四氟乙烯 | SPCW | 50.0 ±1.5 | 70% | 60 |
EZ-FLEX.141-75 | 0.138 (3.5) | 聚四氟乙烯 | SPCW | 75.0 ±2.0 | 69% | 38 |
EZ-FLEX.141 | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 50.0 ±1.0 | 70% | 34 |
EZ-FLEX.141-100 | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 100.0 ±3.0 | 69% | 41 |
EZ-FLEX.141-100J | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 100.0 ±3.0 | 69% | 41 |
EZ-FLEX.141-CLEAR | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 50.0 ±1.0 | 70% | 34 |
EZ-FLEX.141-CU | 0.141 (3.58) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 70% | 34 |
EZ-FLEX.141-CU-J | 0.141 (3.58) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 70% | 34 |
EZ-FLEX.141-DS | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 50.0 ±1.0 | 70% | 34 |
EZ-FLEX.141-J | 0.141 (3.58) | 聚四氟乙烯 | SPCW | 50.0 ±1.0 | 70% | 34 |
EZ-FLEX.141-J-AS | 0.141 (3.58) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 78% | 37 |
.EZ-FLEX.250 | 0.25 (6.35) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 69.5% | 19 |
EZ-FLEX.250-CLEAR | 0.25 (6.35) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 69.5% | 19 |
EZ-FLEX.250J | 0.25 (6.35) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 69.5% | 19 |
EZ-FLEX.250-J-AS | 0.25 (6.35) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 79.0% | 20 |
EZ-FLEX.250-AS | 0.25 (6.35) | 聚四氟乙烯 | SPC | 50.0 ±1.0 | 79.0% | 20 |
