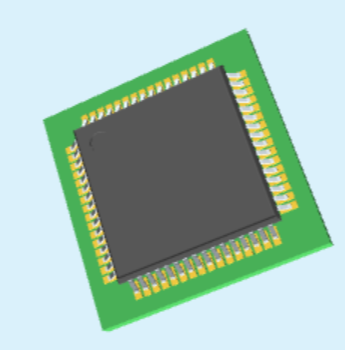

RA2E1微控制器Renesas

发布时间：2023-05-06 17:08:28     浏览：947

Renesas RA2E1是RA系列基础级单芯片微控制器，根据48MHzArm? Cortex?-M23核心，具备高至128kB代码闪存芯片及其16kB的SRAM。RA2E1微控制器选用优化的制造和Renesas 电子的低耗能生产工艺，是行业内顶级能力的超低功耗微控制器。RA2E1微控制器兼容1.6V至5.5V的宽工作电压范围和各种封装，如LQFP、QFN、LGA、BGA和WLCSP。RA2E1能与RA2E1微控制器管脚和外部设备兼容，特别适合于电源供电技术应用及其空间受到限制技术应用，以及其它需要高性能和低耗能系统。

特性

48MHzArm? Cortex?-M23

高至128kB的闪存芯片及其16kBSRAM

4kB数据闪存芯片，提供EEPROM相似的数据存储功能

从25管脚封装拓展至64管脚封装

1.6V-5.5V的宽工作电压范围

高性能电容式触控感应模块(CTSU)

12位ADC，LPACMP，温度传感器

32位通用型PWM定时器，16位通用型PWM定时器，低耗能异步通用型定时器

实时时钟

SCI（UART、简易SPI、简易I2C）

单独的SPI端口/I2C多主端口

安全配置

数据加密功能

多种封装选择（LQFP、QFN、LGA、BGA及WLCSP）

Renesas电子初始成立于日本，Renesas主要以MPU、接口电路、电源管理、光电子以及航天应用产品为特色。Renesas提供专业可靠和创新的嵌入式设计和完整的半导体解决方案，旨在通过使用其产品的数十亿连接智能设备来改善人们的工作和生活方式。Renesas是微控制器的领先供应商，也是世界上模拟电源设备和SoC产品的领先供应商。Renesas电子公司为汽车、工业、基础设施和物联网应用提供全面的解决方案。

深圳市立维创展科技有限公司，优势代理分销Renesas产品线，部分系列常备现货。

详情了解Renesas请点击：http : //www.pipeijob.com/public/brand/59.html




Product ID

Program Memory (KB)

Data Flash (KB)

RAM (KB)

Lead Count (#)

Supply Voltage (V)

Operating Freq (Max) (MHz)

I/O Ports

ADC

Low-Power Analog Comparator (ch) (#)

Bit Size

Temp. Range

R7FA2E1A93CFK#AA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A93CFL#AA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A93CFM#AA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A52DBV#HC0

32

4

16

25

1.6 - 5.5

48

21

12-bit x 8-ch

2

32

-40 to 85°C

R7FA2E1A93CNE#AA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A53CFL#AA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A53CNE#AA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A53CFJ#AA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A53CNH#AA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A53CLM#AC0

32

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A53CBV#HC0

32

4

16

25

1.6 - 5.5

48

21

12-bit x 8-ch

2

32

-40 to 105°C

R7FA2E1A92DFM#AA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A52DLM#AC0

32

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A92DFK#AA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DFL#AA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DNE#AA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DFJ#AA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A92DNH#AA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A92DBU#AC0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A93CFJ#AA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A92DLM#AC0

128

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A93CNH#AA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A92DBV#HC0

128

4

16

25

1.6 - 5.5

48

21

12-bit x 8-ch

2

32

-40 to 85°C

R7FA2E1A93CBU#AC0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A52DNH#AA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A93CLM#AC0

128

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A93CBV#HC0

128

4

16

25

1.6 - 5.5

48

21

12-bit x 8-ch

2

32

-40 to 105°C

R7FA2E1A73CFM#AA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CFK#AA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CFL#AA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CNE#AA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CFJ#AA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A52DFJ#AA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A73CNH#AA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A52DNE#AA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A73CBU#AC0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CLM#AC0

64

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A73CBV#HC0

64

4

16

25

1.6 - 5.5

48

21

12-bit x 8-ch

2

32

-40 to 105°C

R7FA2E1A52DFL#AA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DBV#HC0

64

4

16

25

1.6 - 5.5

48

21

12-bit x 8-ch

2

32

-40 to 85°C

R7FA2E1A72DLM#AC0

64

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A72DBU#AC0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DNH#AA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A72DFJ#AA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A72DNE#AA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DFL#AA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DFK#AA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DFM#AA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A52DFJ#BA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A52DFJ#HA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A53CFJ#BA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A53CFJ#HA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A72DFJ#BA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A72DFJ#HA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A73CFJ#BA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A73CFJ#HA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A92DFJ#BA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A92DFJ#HA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A93CFJ#BA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A93CFJ#HA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A52DFL#BA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A52DFL#HA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A53CFL#BA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A53CFL#HA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A72DFL#BA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DFL#HA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A73CFL#BA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CFL#HA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A92DFL#BA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DFL#HA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A93CFL#BA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A93CFL#HA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A72DFM#BA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DFM#HA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A73CFM#BA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CFM#HA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A92DFM#BA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DFM#HA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A93CFM#BA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A93CFM#HA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A72DFK#BA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DFK#HA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A73CFK#BA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CFK#HA0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A92DFK#BA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DFK#HA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A93CFK#BA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A93CFK#HA0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A52DLM#BC0

32

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A52DLM#HC0

32

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A53CLM#BC0

32

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A53CLM#HC0

32

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A72DLM#BC0

64

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A72DLM#HC0

64

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A73CLM#BC0

64

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A73CLM#HC0

64

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A92DLM#BC0

128

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A92DLM#HC0

128

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 85°C

R7FA2E1A93CLM#BC0

128

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A93CLM#HC0

128

4

16

36

1.6 - 5.5

48

30

12-bit x 12-ch

2

32

-40 to 105°C

R7FA2E1A72DBU#BC0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DBU#HC0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A73CBU#BC0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CBU#HC0

64

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A92DBU#BC0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DBU#HC0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A93CBU#BC0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A93CBU#HC0

128

4

16

64

1.6 - 5.5

48

56

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A52DNH#BA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A52DNH#HA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A53CNH#BA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A53CNH#HA0

32

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A72DNH#BA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A72DNH#HA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A73CNH#BA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A73CNH#HA0

64

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A92DNH#BA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A92DNH#HA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 85°C

R7FA2E1A93CNH#BA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A93CNH#HA0

128

4

16

32

1.6 - 5.5

48

26

12-bit x 10-ch

2

32

-40 to 105°C

R7FA2E1A52DNE#BA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A52DNE#HA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A53CNE#BA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A53CNE#HA0

32

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A72DNE#BA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A72DNE#HA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A73CNE#BA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A73CNE#HA0

64

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A92DNE#BA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A92DNE#HA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 85°C

R7FA2E1A93CNE#BA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C

R7FA2E1A93CNE#HA0

128

4

16

48

1.6 - 5.5

48

40

12-bit x 13-ch

2

32

-40 to 105°C


推荐资讯

  • HI-3718线路驱动器HOLTIC
    HI-3718线路驱动器HOLTIC 2023-02-23 16:47:28

    HOLTIC?的HI-3718是款低能耗CMOS收发器，致力于满足ARINC717和ARINC429标准化的要求。HI-3718作为ARINC717或ARINC429数字协议与哈佛双相(HBP)和/或双极归零(BPRZ)编码物理层之间的接口。

  • SMCJ5629表面贴装TVS二极管Microsemi
    SMCJ5629表面贴装TVS二极管Microsemi 2024-12-04 09:03:22

    Microsemi的SMCG5629至SMCG5665A和SMCJ5629至SMCJ5665A系列是专为保护对低钳位电压敏感的组件而设计的表面贴装瞬态电压抑制器（TVS）。这些产品具有低轮廓表面贴装J型或鸥翼型端子，适用于高电流脉冲保护，提供高可靠性筛选选项和金属键合，工作电压范围为5.5V至171V，支持高热效率和广泛的工作及存储温度范围（-55°C至+150°C），适用于航空、卫星等轻量化应用，并符合多项国际标准进行浪涌和防雷保护。

在线留言

在线留言
【网站地图】【sitemap】
